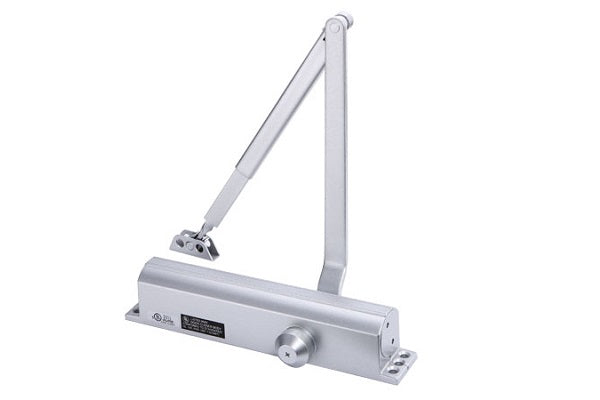

Model 1303 Door Closer Features:
- UL Certified
- BHMA Listed
- ANSI A156.4 Grade 1 Certified
- Universal application: Non-handed for standard, top-jamb, or parallel arm installation
- Non-sized, sizes 2 through 6 and 1 through 4; factory preset at size 3
- Standard adjustable back-check function
- Adjustable closing and latching speed by two separate regulating valves
- Standard full plastic cover
- Extended long arm for top jamb mount with deep reveals (1309 EXT)
- ANSI 156.4 Grade 1: UL listed for fire door assemblies
- Available in Alum, Duro, Gold, US3, US26, US26D, US10A, and US5 finishes
- Optional adjustable delayed action (DA): Preset at the factory for approximately 20 seconds between 70° and 0°; delay time easily adjusted up to 1 minute
- Barrier Free (BR): Meets ADA regulation, sizes 1 through 4; engineered with reduced spring power to provide easier opening for handicapped or elderly
- Specifications:
- Length of Closer Body: 11-3/4"
- Horizontal Mounting Holes: 11-1/8"
- Vertical Mounting Holes: 3/4"
- Width of Closer Body: 2"
- Projection from Door: 2-7/8"
