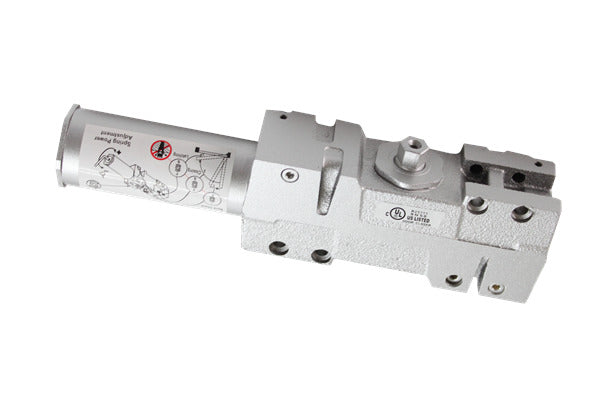

Model 1303 Door Closer Features (Variant):

• UL Certified
• BHMA Listed
• ANSI A156.4 Grade 1 Certified
• Universal application: Non-handed for standard, top-jamb, or parallel arm installation
• Non-sized, sizes 1 through 6; factory preset at size 3, meets ADA
• Standard adjustable back-check function (BA)
• Adjustable closing and latching speed by two separate regulating valves
• Optional adjustable delayed action (DA): Preset at the factory for approximately 20 seconds between 70° and 0°; delay time easily adjusted up to 1 minute (1303 DA)
• Standard full plastic cover
• Self-tapping screws and closer gauge for easy adjustment as standard feature
• Specifications:
  • Length of Closer Body: 11"
  • Horizontal Mounting Holes: 5"
  • Vertical Mounting Holes: 1"
  • Width of Closer Body: 2-3/4"
  • Projection from Door: 2"
